Quick Inspect / MT
Quick Inspect / MT
ยี่ห้อ
: Werth

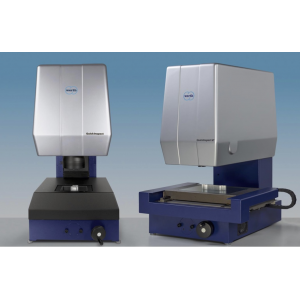

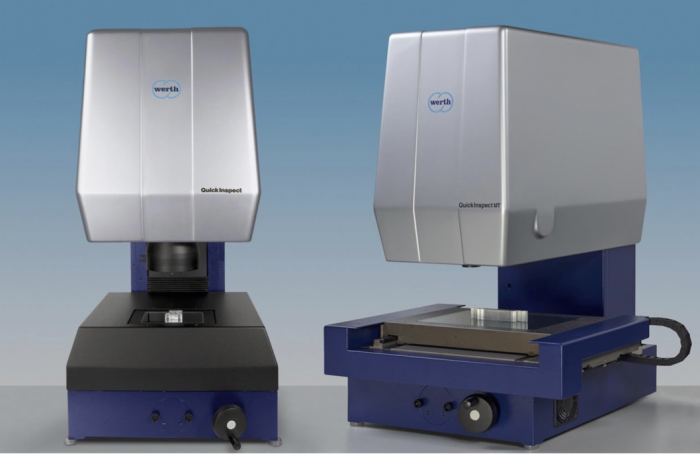

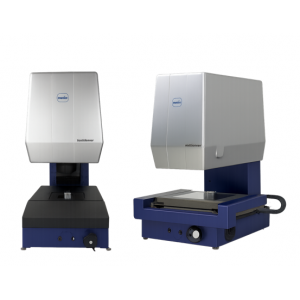

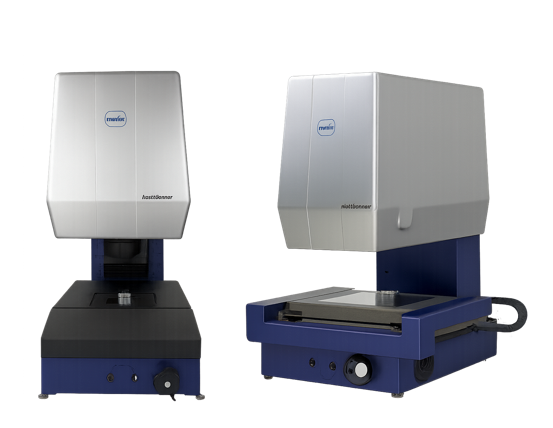

Werth QuickInspect / MT
Fast Measurement in the Field Of View of the Sensor
Design
Benchtop measuring machine with image processing sensor
Available Measuring Sensor
Werth image processing sensor with high resolution CCD camera
Fields of View
8 mm x 6 mm, 20 mm x 15 mm, 40 mm x 30 mm, 80 mm x 60 mm, 230 mm x 180 mm (special ranges upon request)
Maximum permissible length measurement error
down to 0.25 µm
Applications
Profiles, seals, cables, watch industry, etc...
