VideoCheck® FB
VideoCheck® FB
ยี่ห้อ
: Werth

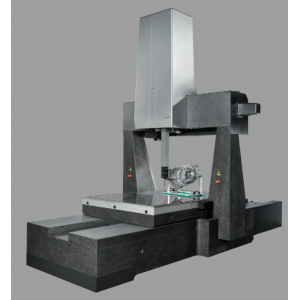

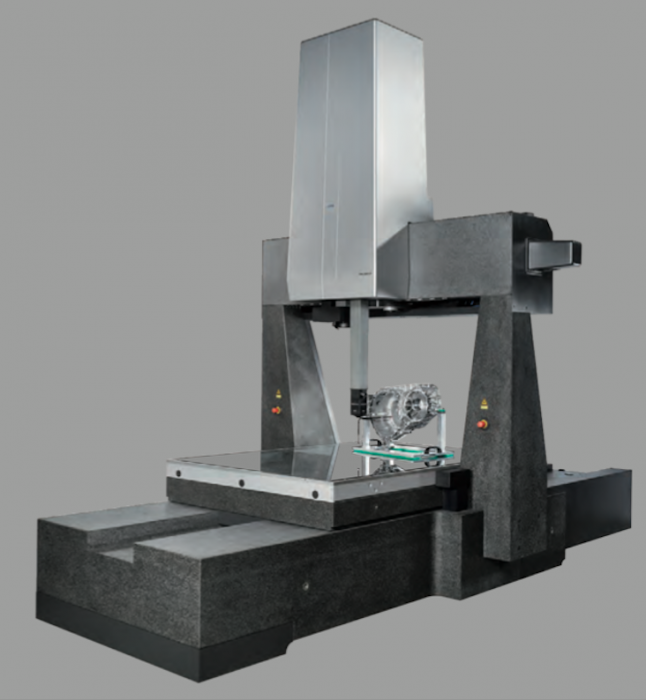

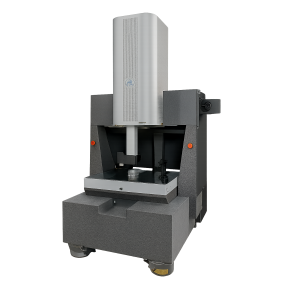

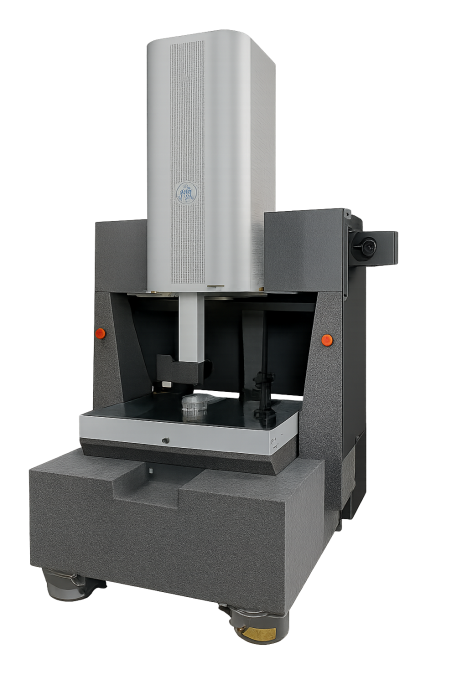

Fixed-bridge Werth VideoCheck
®
Flexibility in production control and laboratory
Design
High accuracy fixed bridge type multi-sensor coordinate measuring machine with air bearing technology and rigid granite design.
Available Measuring Sensors
Werth image processing sensor, Werth 3D-Patch, Werth laser sensor, touch-trigger and dynamic probes, Werth Fiber Probe, Werth Contour Probe, etc.
Measuring Range
X=400-2000mm; Y=400-1350mm; Z=200-800mm
Maximum permissible length measurement error
down to 0.75 µm
Applications
toolmaking and machine building, in automotive (i.e. injection nozzles, valves, gears), electronics-, plastics-, rubber goods-, glass industry, etc.
