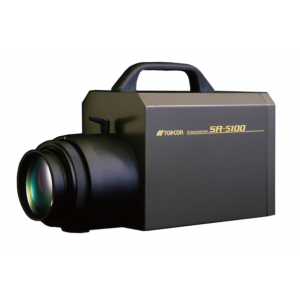

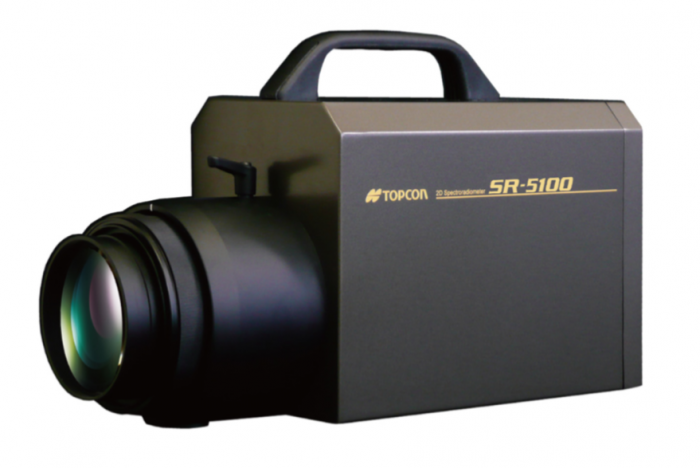

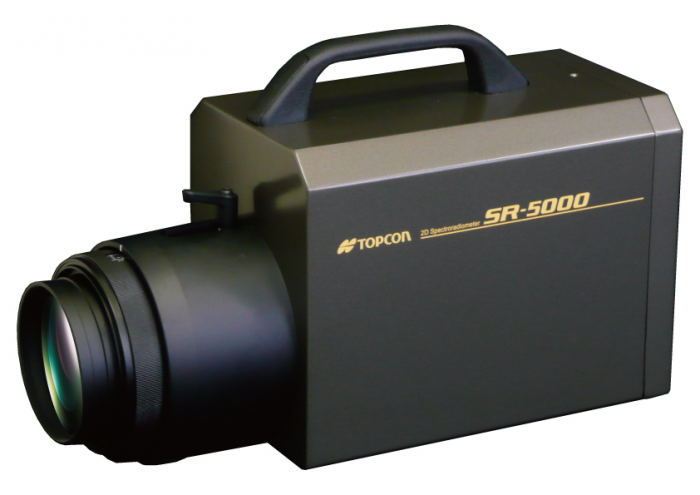

SR-5100

ยี่ห้อ : Topcon / TechnoOptis

Outline

2D spectroradiometer is high precise and accurate measurement by 1nm spectral technology with powerful data analysis software.

By Non-Destruction and Non-Contact, a spectroradiometer instrument that contributes to maintaining high quality of various products as it can evaluate the spectral characteristics of light sources or objects in units of 5 million pixels, 17 billion cd/m2 and 1 nm, such as wavelength characteristics of light sources, spectral transmittance characteristics of materials.

The 2D spectroradiometer SR-5100, analyzes the unique spectra of an object and can be used not only in the characteristics and luminescence products that could not be evaluated by the filter method imaging colorimeter or the human eye, but also in the reflective light and simulation evaluation of an object.
It can be used for a wide range of industries and applications, including micro/mini LED displays that are speeding up development, related materials, texture of materials, skincare, textile dyeing, landscape, etc.

Features

￭ High resolution 5 million pixels (2448×2048) and high luminance (17 billion cd/m2) spectral measurement
￭ Non-destructive and non-contact, 5 million points of spectral evaluation of the characteristics of light sources and objects such as wavelength characteristics of light sources, spectral transmittance characteristics of materials, and spectral reflectance characteristics of objects can be performed with high accuracy.
￭ Imaging spectroradiometer with the same performance as a spot type spectroradiometer.
￭ Highly accurate brightness and chromaticity accuracy is guaranteed by calibration using a light source with traceability.
￭ High-precision and high-speed convertible model that takes advantage of both of the measurement methods of spectral and XYZ filters.
￭ Software included as standard.

Principal use

￭ Luminance / chromaticity and spectral evaluation of LCDs, OLEDs, QDs, lasers, micro LEDs and related components
￭ Emission distribution characteristics and spectral evaluation of automobile meter panels and interior / exterior lighting
￭ Evaluation of luminance / chromaticity mura and spectral of the light emitting part of LED lighting and OLED lighting
￭ Spectral evaluation of all objects in the landscape indoors and outdoors
￭ Spectral evaluation of textile dyed fabrics
￭ Skin care assessment of skin blemishes and pigmentation
￭ Analysis of absorption, reflection and transmission characteristics
￭ Measurement of film and glass coating mura and interference fringes
￭ Analysis and quantification evaluation of slight differences in the staining status of pathological tissue (SR-5100HM + microscope)

Specifications

Measurement mode	Spectral Mode
Detector	5.0 mega pixel CMOS image sensor
Objective lens	Standard lens : Focal length f=32mm Standard lens with wide attachment lens : Focal length f=24mm (1) Telephoto lens : Focal length f=140mm Macro lens Lens selection type
Effective pixel	2448×2048
Measurement range(*2)	0.5～17,000,000,000 cd/m2
Wavelength range	380～780nm
Spcetral accuracy(*4)	±0.5 nm (On the wavelength of Hg emission line)
Spectral band width (*5)	7 nm (Half width)
Wavelength resolution	1 nm
Linearity in luminance	±2% (3,6)
Chromaticity accuracy	Standard lens with wide attachment lens・Macro ±0.0035 (3,6) ±0.0025 (3,6) ±0.005 (6,9) Telescope ±0.0035(≦1cd/m2) (3,6) ±0.0030(1cd/m2＜) (3,6) ±0.005(6,9)
In-plane uniformity(*10)	Luminance：±2% Chromaticity：±0.003
Repeatability	Standard lens with wide attachment lens・Macro Luminance：0.6%(≦1cd/m2) (3,6,7) 0.5%(1cd/m2＜) (3,6,7) Chromaticity(x,y)：0.003(≦1cd/m2) (3,6,8) 0.002(1cd/m2＜) (3,6,8) Telescope Luminance：0.8%(≦1cd/m2) (3,6,7) 0.5%(1cd/m2＜) (3,6,7) Chromaticity(x,y)：0.004(≦1cd/m2) (3,6,8) 0.003(1cd/m2＜) (3,6,8)
Interface	USB3.0 / External trigger
Power supply	AC100 – 240V(50/60Hz) Dedicated AC adapter (Standard accessory)
Power consumption	Approx. 20W
Operating condition	Temperature： 0 – 35℃ Humidity　： 80%R.H. or less(No condensation)
External dimensions	Wide type　　： W162×H247×D402.4 mm Telephoto type： W162×H247×D412.5 mm Macro type　： W162×H247×D330.5 mm *(Protruding parts are not included)
Weight	Wide type　　： Approx. 6.3kg Telephoto type： Approx. 8.2kg Macro type　： Approx. 5.8kg

*1 Standard lens with wide attachment lens
*2 Standard illuminant A,
*3 Standard illuminant A,
*4 Hg, Hi precision mode
*5 FWHM, Hi precision mode
*6 At the center of sensor
*7 Within 2σ
*8 Max value – Min value
*9 Standard illuminant A + our standard colored glass filters.
*10 Center of the sensor, Standard illuminant A, within 80% of field of view

Measurement mode	XYZ(Filter) Mode
Detector	5.0 mega pixel CMOS image sensor
Objective lens	Standard lens : Focal length f=32mm Standard lens with wide attachment lens : Focal length f=24mm (1) Telephoto lens : Focal length f=140mm Macro lens Lens selection type
Effective pixel	2248×2048
Measurement range (*2)	0.005～100,000 cd/m2
Linearity in luminance	±3.5%(≦1cd/m2) (2,3) ±3.0%(1cd/m2＜) (2,3)
Chromaticity accuracy	Standard lens with wide attachment lens・Macro ±0.0085(≦1cd/m2) (3,6) ±0.0050(≦0.05cd/m2) (3,6) ±0.0030(0.05cd/m2＜) (3,6) ±0.008 (6,9) Telescope ±0.0090(≦1cd/m2) (3,6) ±0.0050(≦0.05cd/m2) (3,6) ±0.0030(0.05cd/m2＜) (3,6) ±0.008 (6,9)
In-plane uniformity (*10)	Luminance：±2% Chromaticity：±0.003
Repeatability	Standard lens with wide attachment lens・Macro Luminance：0.70%(≦1cd/m2) (3,6,7) 0.35%(1cd/m2＜) (3,6,7) Chromaticity(x,y)：0.006(≦1cd/m2) (3,6,8) 0.004(≦0.05cd/m2) (3,6,8) 0.002(0.05cd/m2＜) (3,6,8) Telescope Luminance：0.90%(≦0.01cd/m2) (4,7,8) 0.35%(0.01cd/m2＜) (4,7,8) Chromaticity(x,y)：0.009(≦1cd/m2) (3,6,8) 0.004(≦0.05cd/m2) (3,6,8) 0.002(0.05cd/m2＜) (3,6,8)
Interface	USB3.0 / External trigger
Power supply	AC100 – 240V(50/60Hz) Dedicated AC adapter (Standard accessory)
Power consumption	Approx. 20W
Operating condition	Temperature： 0 – 35℃ Humidity　　： 80%R.H. or less(No condensation)
External dimensions	Wide type　　　： W162×H247×D402.4 mm Telephoto type： W162×H247×D412.5 mm Macro type　　： W162×H247×D330.5 mm *(Protruding parts are not included)
Weight	Wide type　　　： Approx. 6.3kg Telephoto type： Approx. 8.2kg Macro type　　： Approx. 5.8kg

Measurement area

SR-5100HWS：Standard lens

Measurement distance [mm]*	400	500	1000	1500	2000	2500
Horizonal [mm]	1780	221.5	435.9	649.7	866.2	1072.5
Vertical [mm]	148.9	185.3	364.7	543.5	724.7	897.2
Inch [diagonal]	9.1	11.4	22.4	33.3	44.5	55.1

SR-5100HWS：Standard lens with wide attachement lens

Measurement distance [mm]*	400	500	1000	1500	2000	2500
Horizonal [mm]	246.6	303.0	587.5	869.9	1155.0	1437.5
Vertical [mm]	206.3	253.5	491.5	727.8	966.2	1202.7
Inch [diagonal]	12.7	15.6	30.2	44.7	59.3	73.8

SR-5100HT： Telescope lens

Measurement distance [mm]*	600	1000	1500	2000	2500
Horizonal [mm]**	60.5	108.6	168.9	229.0	288.7
Vertical [mm]**	50.6	90.9	141.3	191.6	241.6
Inch [diagonal]	3.1	5.6	8.7	11.8	14.8

SR-5100HM： Macro lens

Measurement distance [mm]*	6
Horizonal [mm]**	6.8
Vertical [mm]**	5.7
Inch [diagonal]	0.3

* The measurement distance is the distance from the tip of the metal fixture on the instrument of the objective lens.
** This is production on order.
