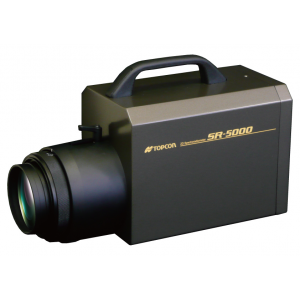

SR-5000 series

ยี่ห้อ : Topcon

Outline

2D spectroradiometer is high precise and accurate measurement by 1nm spectral technology with powerful data analysis software.
It is possible to be sensing for a various object and purpose by analyzing the image that contains the detailed information such as spectrum.

Features

￭ Spectrum measurement with 1376 x 1024 pixel.
￭ Spectral analysis enable various kind of usage.
￭ World first complete traceability and calibration for Luminance and Chromaticity.

Principal use

￭ Evaluation of luminance, chromaticity, optical spectrum for LCD, OLED and related materials.
￭ Evaluation of emission spectrum distribution characteristics for meter of automotive, the light of interior (exterior).
￭ Evaluation of luminance, chromaticity, optical spectrum for light-emitting part of LED(OLED).
￭ Evaluation of visualization for color shading(concentration) of paint.
￭ Analysis and applications for the medical field.

Specifications

Detector	1.4 mega pixel CCD image sensor
Objective lens	Standard lens : Focal length f=32mm Standard lens with wide attachment lens : Focal length f=24mm (*1)
Effective pixel	1376×1024
Data bit	14 bit
Measurement range	0.5～5,000,000 cd/m2
Wavelength range	380～780nm
Spcetral accuracy	±0.5 nm (On the wavelength of Hg emission line)
Spectral band width	7 nm (Half width)
Wavelength resolution	1 nm
Linearity in luminance	±2%(2,3)
Chromaticity accuracy	±0.002(2,3) Telescope・Macro Within ±0.0035 (Less than 1 cd/m2), Within ±0.002 (Above 1 cd/m2) ±0.005(3,*6)
In-plane uniformity(*7)	Luminance：±2% Chromaticity：±0.003
Repeatability	Luminance　　　：±0.5%(2,3,4) Chromaticity(x,y)：±0.002 (1cd/m2 or less)(2,3,5) ±0.001 (More than 1 cd/m2)(2,3,*5)
Interface	USB3.0 / External trigger
Power supply	AC100 – 240V(50/60Hz) Dedicated AC adapter (Standard accessory)
Power consumption	Approx. 20W
Operating condition	Temperature： 5 – 40℃ Humidity　　： 85%R.H. or less(No condensation)
External dimensions	Standard type： W162×H247×D372.5 mm Wide type　　： W162×H247×D402.4 mm *(Protruding parts are not included)
Weight	Standard type： Approx. 5.5kg Wide type　　： Approx. 5.7kg

*1 Standard lens with wide attachment lens
*2 Standard illuminant A
*3 At the center of CCD
*4 Within 2σ
*5 Max value – Min value
*6 Standard illuminant A + our standard colored glass filters.
*7 Center of the CCD, Standard illuminant A, within 80% of field of view
